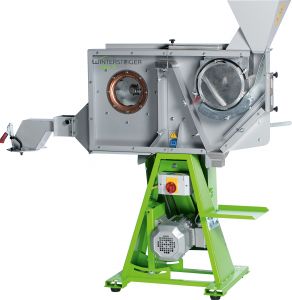

Hege 16 Laboratory thresher

Laboratory thresher for cereals, peas and small grain crops with optional magazine filling attachment.

The clear-view screen creates an unobstructed view of the threshing and cleaning process, enabling precise control of the threshing process.


Functional principle

  • The proven threshing technology of the Hege 16 guarantees fast threshing and grain protection
  • The threshed crop is cleaned in the reverse flow wind process and collected in a container or magazine
  • Variable adjustment of the threshing drum speed and the central concave, different concaves, deawners and beaters ensure simple adjustment for different types of crop
  • Stepless wind adjustment means maximum cleaning of the crop


Beschickung HEGE16
Technical Data
Three phase motor 3 x 400 V, 50 Hz, 1,1 kW
Alternating current motor 1 x 220-230 V, 50 Hz, 0,75 kW
Threshing drum Continuously variable 430 – 2400 rpm
Measurements Length: 950 mm (37”)
Width: 600 mm (24”)
Height: 1200 mm (47”)
Weight Approx. 95 kg (209 lbs)

We reserve the right to make technical alterations.

We would be happy to help!

Experienced WINTERSTEIGER sales staff can help you to find an individual solution for your needs!
